RealVision 3D Transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing.

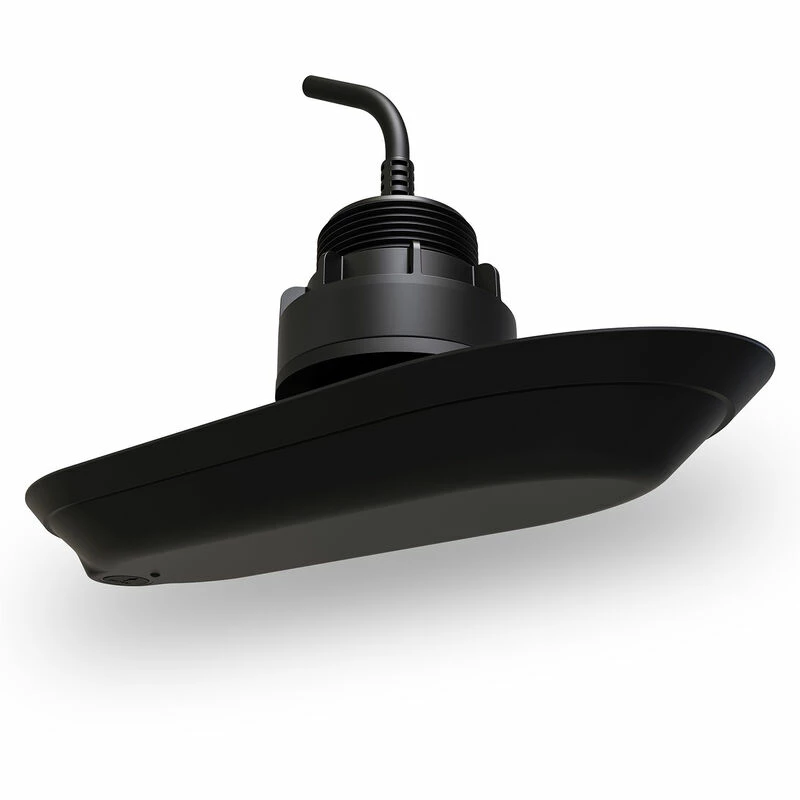

Designed for inboard or outboard boats, the RV-320 Plastic Thru-Hull Transducer System lets you easily identify structures and locate fish with the lifelike clarity of RealVision 3D™ sonar.

Raymarine’s RV-320 Plastic Thru-Hull Transducer System Pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-320 system works great on trailered boats too.

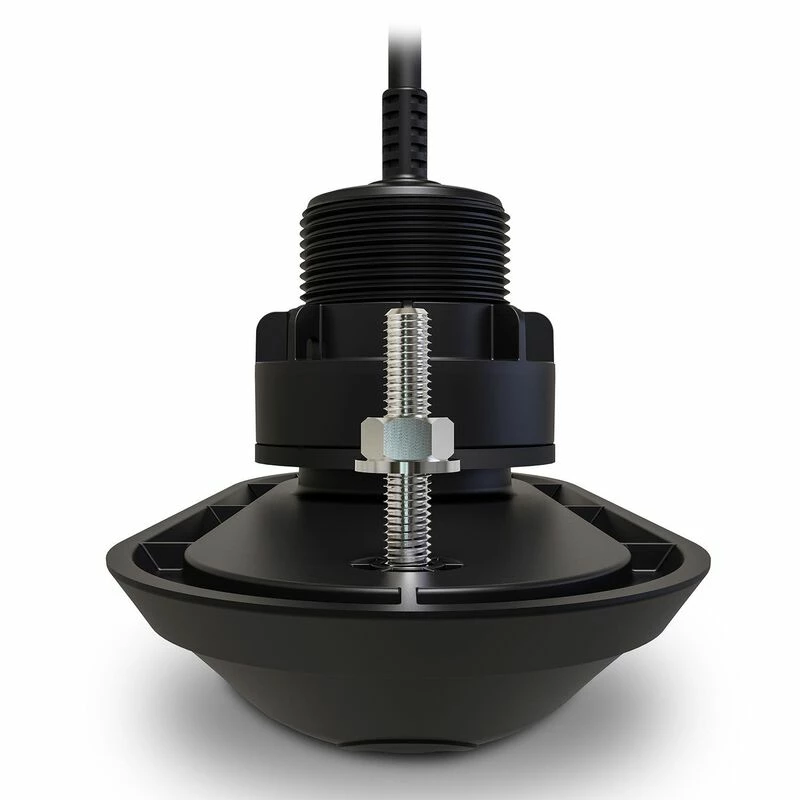

The RV-320 system features rugged plastic thru-hull bodies suitable for fiberglass or aluminum hulls. One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet).

Key Features

• Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
• Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
• Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
• Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W  50/200kHz traditional sonar
• The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
• You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering
• Built-in fast response water temperature sensor for quick, accurate readings
• One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
• The low-profile design slips effortlessly through the water without causing drag or cavitation
• Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33′).
• The near-flush RV-320 system works great on trailered boats too, and with no fairing block to cut, installation is a breeze

Specifications

• Application: Axiom displays
• Style: Twin thru-hulls
• Cable Length: 6’7″ pigtails on each transducer, 26’4″(8m) extension cable
• Connector: 25-Pin Connector
• Monitors: Depth/Temperature
• Material: Plastic
• Transmit Power: 100W (CHIRP); 600W traditional (RMS)
• Frequency: 50/200kHz traditional; DownVision, SideVision, CHIRP and RealVision 3D
• Deadrise Angle: 13° to 20° offset port/starboard
• Max. Depth: Traditional: 900′; 3D: 300′; CHIRP DownVision: 300′; CHIRP SideVision: 300′
• Beamwidths: 180°  total

What’s in the Box

• (2) RV-320 Plastic Thru-Hull Transducers; (1) Port / (1) Starboard
• Split Transducer Y-Cable
• 8 meter Transducer Extension Cable
• Installation instructions
