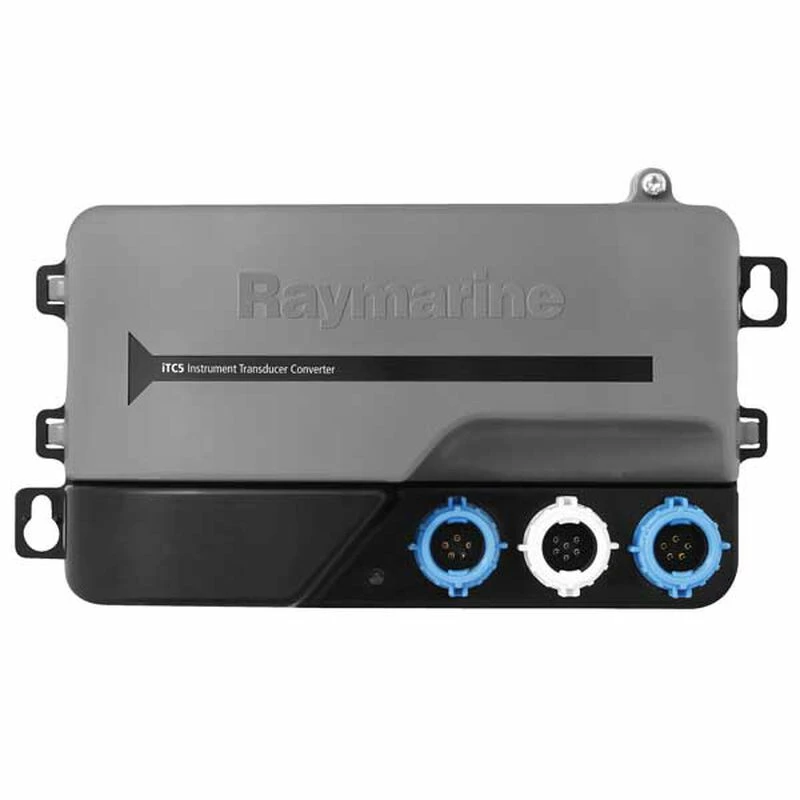

The iTC-5 converts analog (spade connector) transducer signals used in ST60+, i70, ST70+ and ST70 instruments into SeaTalk^ng sentences for integration into full SeaTalk^ng backbone systems.

Transducers for Speed, Depth, Wind, Rudder Angle and Fluxgate Compass can be connected to one iTC-5 unit, eliminating the need for multiple ST70 pods. Extended SeaTalk^ng systems can support multiple iTC-5 units. SeaTalk^ng connections at the base of the unit simply connect the iTC-5 unit to the SeaTalk^ng backbone.

Six LED Status Indicators show integrity of connected transducers and the SeaTalk^ng network. In an SPX autopilot system the fluxgate compass and rudder reference transducer must be connected directly to the course computer and not the iTC-5.

Key Features

• All-in-one analog to digital converter for depth, speed/temperature, wind, compass and rudder transducers
• Converts analog transducer signals used in Raymarine i70, ST70+ and ST70 instrument systems to SeaTalk^ng protocol
• Transducers for speed, temperature, depth, wind, rudder angle and fluxgate compass can be connected to one iTC-5 unit, eliminating the need for multiple ST70 pods
• Extended SeaTalk^ng systems can support multiple iTC-5 units
• SeaTalk^ng connections at base of unit simply connect the iTC-5 unit into the SeaTalk^ng backbone*
• iTC5 unit provides all necessary power and communications connections to transducers
• Works with most analog transducers from legacy Raymarine ST30, ST40, ST50, ST60, ST80 and ST290 series instruments
• iTC5 also works with Raymarine fluxgate compass modules

*Note: ST40, i40, i50, i60 and ST60+ displays cannot calibrate the iTC-5. Only the i70 has full transducer calibration. The ST70 and ST70+ can calibrate depth, wind and speed / temperature transducers (not rudder or compass). If you do not have an ST70, ST70+ or i70 in your system, then ST40, i40, i50, i60 and ST60+ displays must be interfaced directly to the appropriate analog transducers.

Specifications

• Connections: SeaTalk^ng backbone, one SeaTalk^ng spur, five transducer connections with spade terminals
• Included Accessories: two fasteners and 15 3/4″ SeaTalk^ng spur cable (A06038)
• Voltage: 12V (9-16V DC)
• Draw: 150mA peak
• Width: 3 11/16″
• Height: 6 7/16″
• Depth: 1 3/4″
• Waterproof Rating: IPX2 splash-resistant
• Warranty: Two years
