Discount 😉 NAVICO StructureScan® HD Thru-hull Dual Frequency SideScan/DownScan Transducer 🛒

Enhanced imaging transducer generates three dedicated signals for photo-like images to the left, right and directly beneath your boat.

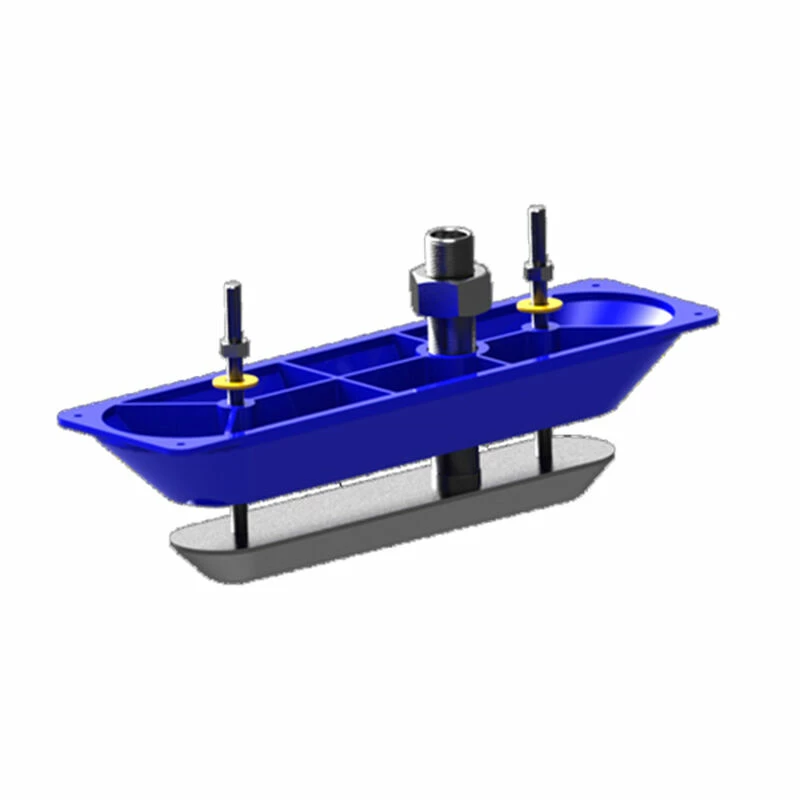

Nylon and stainless steel thru-hull transducer for LSS-2 StructureScan HD is a low profile, low-drag design with built-in water temp sensor.

Key Features

• Thru-hull Stainless steel transducer for StructureScan® HD Sonar, providing more range and greater resolution
• Thru-hull Stainless steel version delivers extreme target detail, bottom discrimination and bait and game fish separation at depths to 300′ and a wider range of 600′ side-to-side coverage
• Packed with an enhanced dual-frequency element array that operates at 455kHz and 800kHz
• This sturdy, stainless steel transducer is resistant to the electrical forces in the environment where it will be used
• Low-profile design minimizes drag, provide exclusive three-channel beam, port and starboard SideScan plus DownScan Imaging™ technology
• Includes a high-performance fairing that will give you Structure performance at speeds up to 35 mph
• Features a 30′ transducer cable

Specifications

• Style: Thru-hull
• Cable Length: 30′ (requires 26mm diameter hole for plug)
• Monitors: Depth and Temperature
• Material: Stainless steel
• Transmit Power: 500W (RMS)
• Frequency: Enhanced 455/800kHz
• Max. Depth: Sidescan: 600′ @ 455kHz; 200′ @ 800kHz; Downscan: 300′
• Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
• Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
• Hull Deadrise: 0° to 12°
