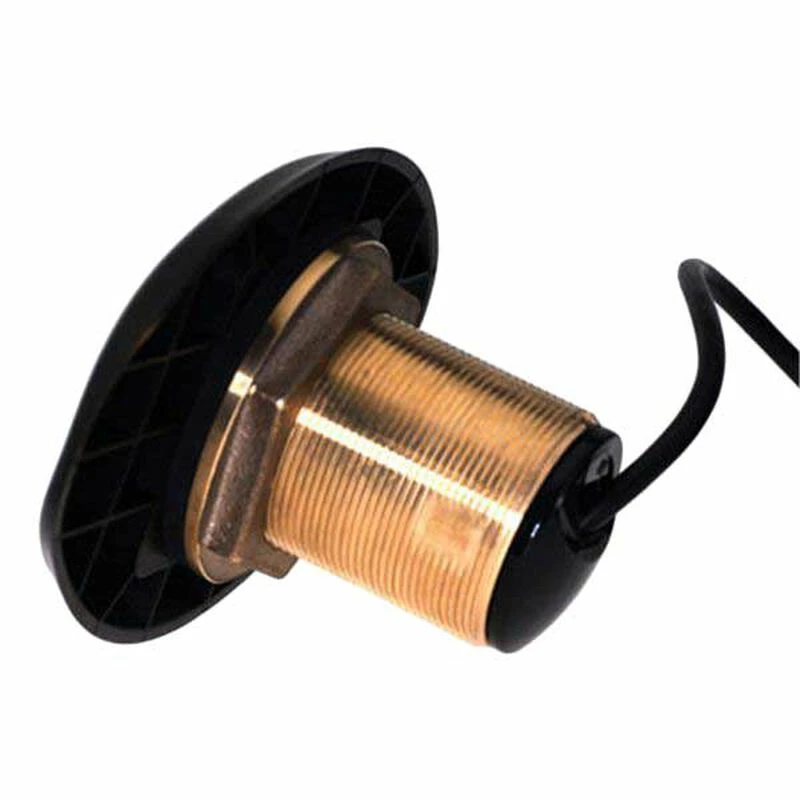

20Β° tilted element thru-hull provides 50/200kHz traditional frequencies plus 455/800kHz DownScan Imaging plus temperature. Provides 16Β° to 24Β° hull deadrise compensation. Compatible with HDS Gen2 Touch, HDS Gen2, Elite-7 HDI and Simrad NSS.Β
- Transmit Power: 600W (RMS)
- Beamwidth:Β 50kHz: 45Β°, 200kHz: 11Β°, 455kHz: Fore to aft 2.8Β°, Port to starboard 56Β°; 800kHz: Fore to aft 1.6Β°, Port to starboard 32Β°
- Frequency: 200/50, 455/800kHz
- Max. Depth: 50kHz 3,000′, 200kHz 1,000′, 455kHz 300′, 800kHz 100′
- Cable: 33′ with blue 7-pin connector
- Compatible Hull Materials: Fiberglass or wood
- Hole Diameter for Installation: 2 3/8″
Β
