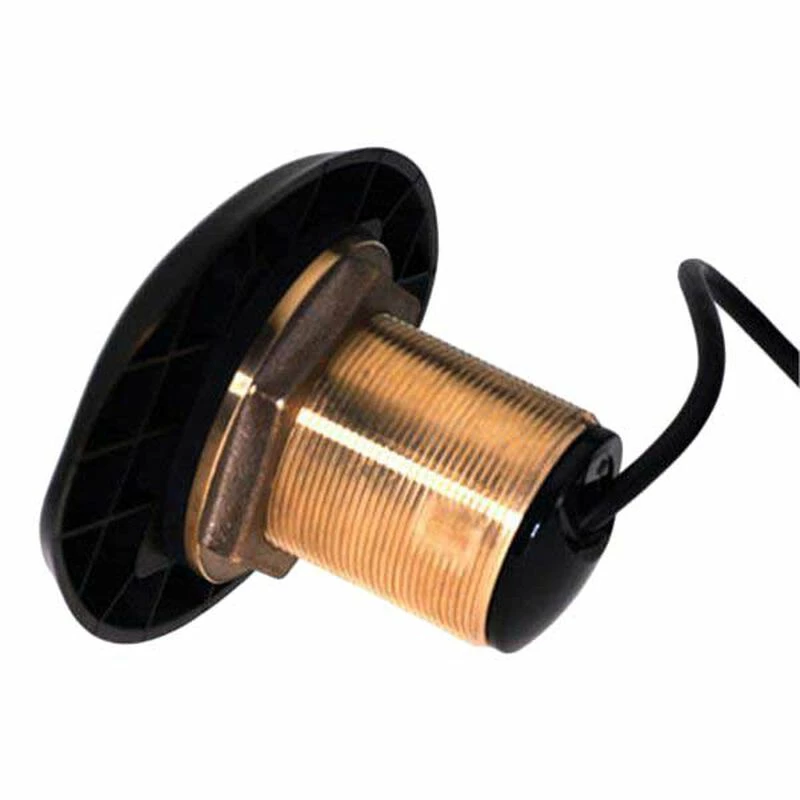

New ⭐ LOWRANCE 12° Tilt Thru-Hull Hybrid Dual Imaging Transducer 🔥

Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer. Works with HDS Gen2 Touch and Elite-7 HDI fishfinders. Provides 50/200kHz traditional frequencies plus 455/800kHz DownScan Imaging plus temperature. The transducer comes with a 33′ cable and blue 7-pin Lowrance connector which plugs directly into the Gen 2 Touch and the Elite-7 HDI. The transducer must be selected in the installation menu on the device.

• Frequency: 50/200kHz, 455/800kHz DSI
• Beamwidth: 50kHz 45°, 200kHz 11°, 455kHz (Fore to aft 2.8°, Port to starboard 56°), 800kHz (Fore to aft 1.6°, Port to starboard 32°)
• Material: Bronze
• Transmit Power: 600W (RMS)
• Maximum Depth: 50kHz 3,000′, 200kHz 1,000′, 455kHz 300′, 800kHz 100′
• Cable Length: 33′
• Style: Thru-hull
• Tilted Element Angle: 12°
• Hole Diameter for Installation: 2.375″
• Sensors: Depth/Temp
