360 Imaging™ provides a complete around-the-boat underwater image, with detail similar to Side Imaging (SI). With a single sweep, 360 Imaging covers a 300′ diameter circle (70,685 sq. ft.). Choose from five beam rotation speed settings. Lower beam speeds give higher image quality but lower refresh rates; higher beam speeds have lower image quality but higher refresh rates. With five options, you can find the ideal setting for your boat speed, water conditions and need for detail. Stop in one direction and isolate your sweep area over a section of water from 10° to 360°. You can lock in your beam anywhere, but the area in front of your boat is especially useful.

Because your transducer has less ground to cover, you’ll also benefit from a faster refresh rate.  Mark interesting returns with a waypoint directly on your 360 Imaging screen. The exact location will be stored in your unit’s memory and is viewable on GPS cartography. Deploy 360 Imaging using your Humminbird unit or the control buttons found on the 360 Imaging Transducer Deployment System.

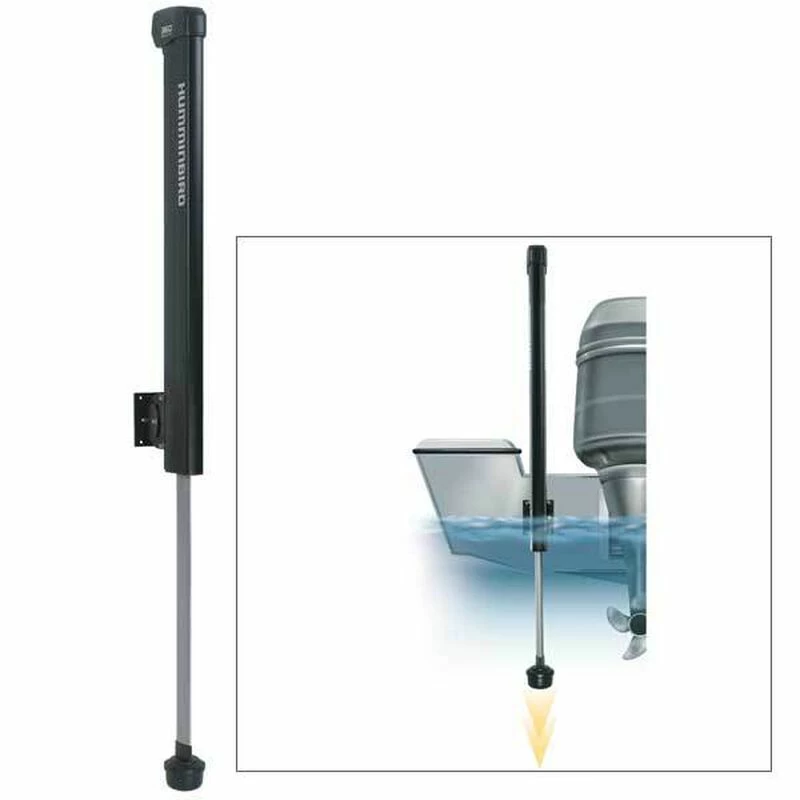

The Transom Mount transducer drops below your boat’s hull and prop for unobstructed 360° view. Easily set deployment depth based on your prop clearance and it will be stored in the TDS memory. System operates quietly, escaping the notice of nearby fish.

This optional accessory does not replace your standard Side Imaging transducer, it enhances your product. You must use standard transducer in order to have a digital depth reading.

Compatible with Ethernet-ready, Side Imaging-equipped Humminbird fishfinders. For use with:

• 1198c SI
• 998c HD SI
• 998c SI
• 898c HD SI
• 898c SI
• 798ci HD SI

Features:

• Ability to mark waypoints anywhere on the 360 Imaging screen
• An audio alert is given when the boat nears a waypoint within casting range
• Capable of recording video and screen captures
• Eight color palettes
• Five sonar speed settings
• Specific area can be selected and zoomed in on

Specifications:

• Weight: 18.25 lbs.
• Amperage: At Rest (retracted): 270mA; Deployed: 2.8A; Scanning: Typical: 360mA, Fastest Scan Menu: 500mA, During Retraction: 2A
• Dimensions: Length: 51″ (fully retracted), Width: 3 1/2″, Pod Diameter: 4 3/4″
• Included Equipment:  AS GPS HS (GPS Receiver with Heading Sensor), 8′ power cable, addition 3′ foot cable for quick disconnect, bow mounting bracket and a 20′ Ethernet Cable
