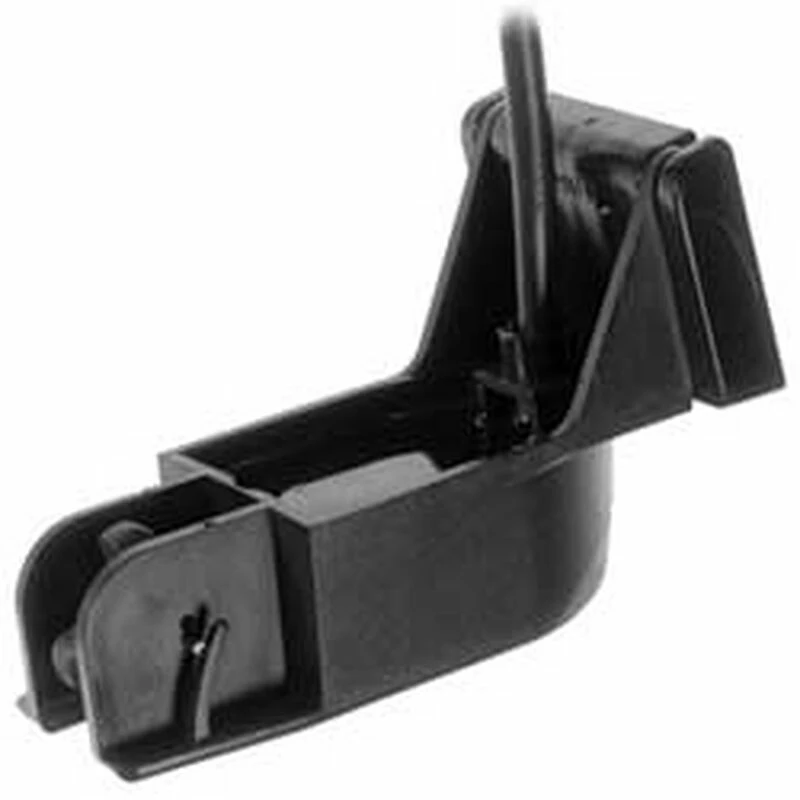

Brand new ✨ GARMIN P32 Transom Mount Dual Frequency Transducer ❤️

Plastic transom mount provides depth, speed and temperature in one package.

Garmin’s 8-pin 500W transducer has a maximum working depth of 900′ a beamwidth of 45°/15°. Applications include outdrives and outboard boats, jet boats or small, general-purpose vessels. Requires transducer adapter cable, 010-11947-00 with echo™ series fishfinders.

Key Features

• Square blade paddlewheel improves linearity and is more accurate throughout the speed range
• Release bracket kicks up to prevent impact damage to transducer
• Paddlewheel is easily removed for service
• Impressive noise shielding in a compact, economical transducer
• Bracket vertical adjustment: 19mm (3/4″)
• Chemical and impact resistant plastic housing

Specifications

• Style: Transom mount
• Cable Length: 30′
• Number of Pins: 8-pin
• Supported Transom Angle: 3°-20° degree transom
• Monitors: Depth, Speed and Temperature
• Material: Nylon
• Transmit Power: 500W (RMS)
• Frequency: 77/200kHz
• Max. Depth: 900′
• Beamwidths: 45°/15°
