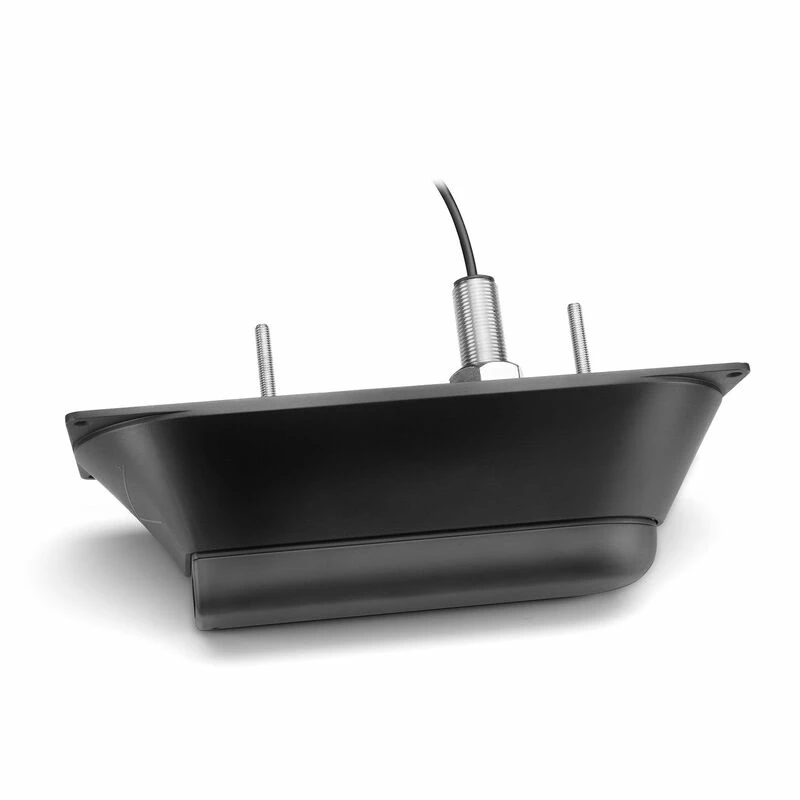

GT23M-TH transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVΓΌΒ scanning sonar.
This thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat. The 8-pin transducer features mid-band CHIRP traditional sonar (80-160kHz) and has a power rating of 600W. The CHIRP ClearVΓΌΒ (260/455kHz) element has a power rating of 500W.
Specifications
- Style: Thru-hull with fairing
- Cable Length: 30′(6m)
- Connector: 8-pin
- Maximum Deadrise Angle: Up to 25Β° deadrise
- Monitors: Depth/Temperature
- Material: Plastic
- Transmit Power: CHIRP Traditional 600W; ClearVΓΌ 500W
- Frequency Range: CHIRP Mid-band (80-160kHz); ClearVΓΌ CHIRP 260kHz (245-275kHz) and 455kHz (445-465kHz)
- Max. Depth: Traditional: 1,800′; ClearVΓΌ: 1,000′
- Beamwidths: Traditional (24Β°-13Β°); ClearVΓΌ (2.0Β° x 51Β° @ 260kHz) & (1.4Β° x 29Β° @ 455kHz)
What’s in the Box
- GT23M-TH transducer
- Stainless steel stem
- Fairing block
- Isolation plate and bushings
- Extension cable
- Mounting hardware
- Documentation
