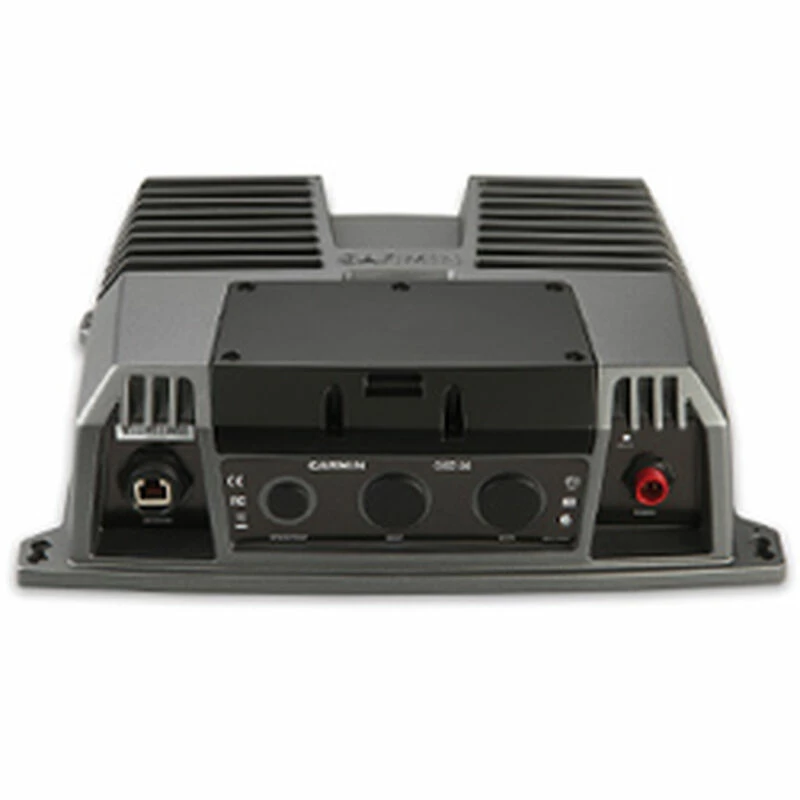

Cheap ⌛ GARMIN GSD™ 26 CHIRP Professional Sonar Module 😉

The GSD 26 is a remote CHIRP sounder for the serious sport angler.

CHIRP Spread Spectrum technology:  GSD™ 26 CHIRP Professional Sonar Module takes high-definition gamefish targeting to a new level with digital Spread Spectrum technology, scanning on multiple frequencies at one time, returning vast amounts of data. As a result, you can expect precise, shallow-water-like target separation at much greater depths—up to 10,000′.

Traditional sonar: Its traditional fixed frequency mode also lets you dial into specific frequencies, from a very low 25kHz to a high of 210kHz, to target certain species of sport fish, with significantly better target definition, bottom contours and signal noise suppression at greater depths than traditional models.

Dual-transceivers allow for simultaneous and independent dual transducer operation, which allows complete customization. GSD 26 provides faster screen updates and a more timely interpretation of what’s below for safer navigation and better fishing.

Selectable transmit power: Designed for Garmin’s newest broadband transducers, the GSD 26 offers selectable transmit power from 300 to 3,000 watts.

Specifications

• Frequency: Manually adjustable, from 25kHz to 210kHz
• Transmit Power: Selectable 300-3,000W
• Maximum Depth: 10,000′
• Dimensions: 14 11/16″W x 10 13/16″L x 3 15/16″H
• Included Equipment: Power cable and 6′ Marine Network cable, mounting hardware, SD card
• NMEA Interface: Ethernet
• Compatible Devices: Compatible with the Garmin Marine Network for display on the latest Garmin GPSMAP^® 4000/5000 and 6000/7000/8000 series displays
• Transducer: Sold separately
• Waterproof Rating: IPX7
• Warranty: Two years

 What’s in the box

• GSD 26
• Power cable
• Marine network cable (6′)
• Mounting hardware
• software update SD card
• Documentation

Transducer Options

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

---

Transducer Type	Reading(s)	Transmit Power	Max. Depth	Material	Model
CHIRP Airmar B265LM Thru-Hull (Bare Wire)	Depth/Temperature	1 kW	3,000′	Bronze	13178736
CHIRP Airmar R109LH Thru-Hull (Bare Wire)	Depth/Temperature	2 kW	8,000′	Plastic	13178744
