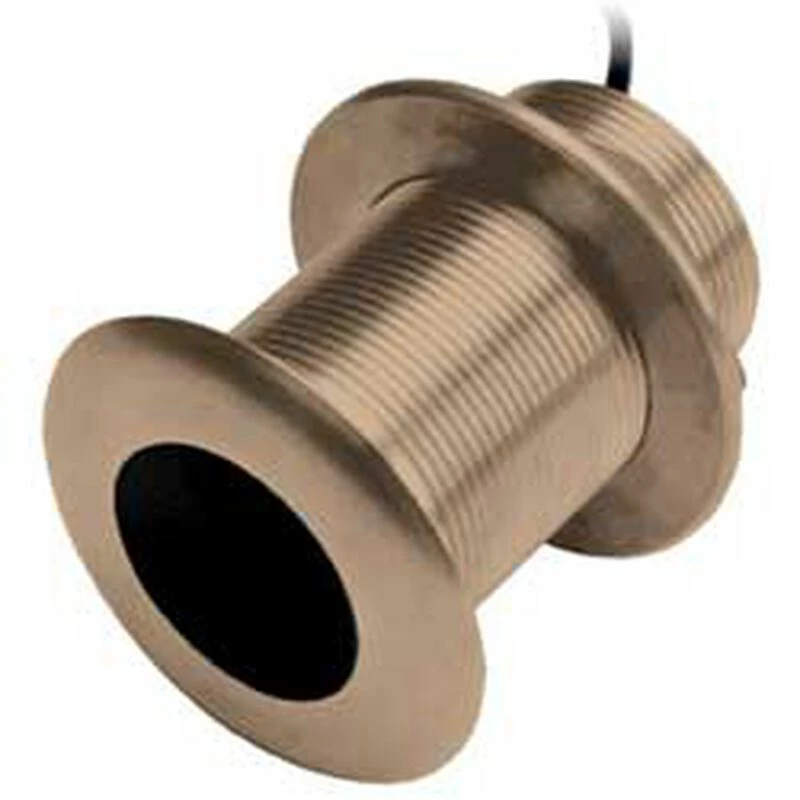

Discount 🌟 GARMIN B619 20° Tilt Thru-Hull Dual Frequency Transducer 🌟

Performs well at high speeds and is an excellent choice for fiberglass and metal hulls.

The B619 model has been the standard in low-profile thru-hull bronze transducers for many years. its large sensitive ceramics allow deep echosounding up to 900′. These nearly flush thru-hulls minimize drag as only 3/16″ of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted 20° to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. When using with the echo series fishfinders, transducer adapter cable part number 010-11947-00 is required.

Key Features

• Depth and temperature
• Fixed 20° tilted versions for 16° to 24° hull deadrise
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer that allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Bronze housing
• Boat Size: Up to 30′

Specifications

• Style: Thru-hull
• Cable Length: 30′
• Number of Pins: 8-pin
• Supported Deadrise Angle: 16°-24° degree deadrise
• Monitors: Depth and Temperature
• Material: Bronze
• Transmit Power: 500W (RMS)
• Frequency: 77/200kHz
• Max. Depth: 900′
• Beamwidths: 45°/15°
